High definition and multiple formats to communicate in full color way.
APPLICATIONS
- Pylon mounting
- Totem and Flag mounting
- Canopy Fascia mounting
- Digital Signage and Custom
Please wait while flipbook is loading. For more related info, FAQs and issues please refer to DearFlip WordPress Flipbook Plugin Help documentation.

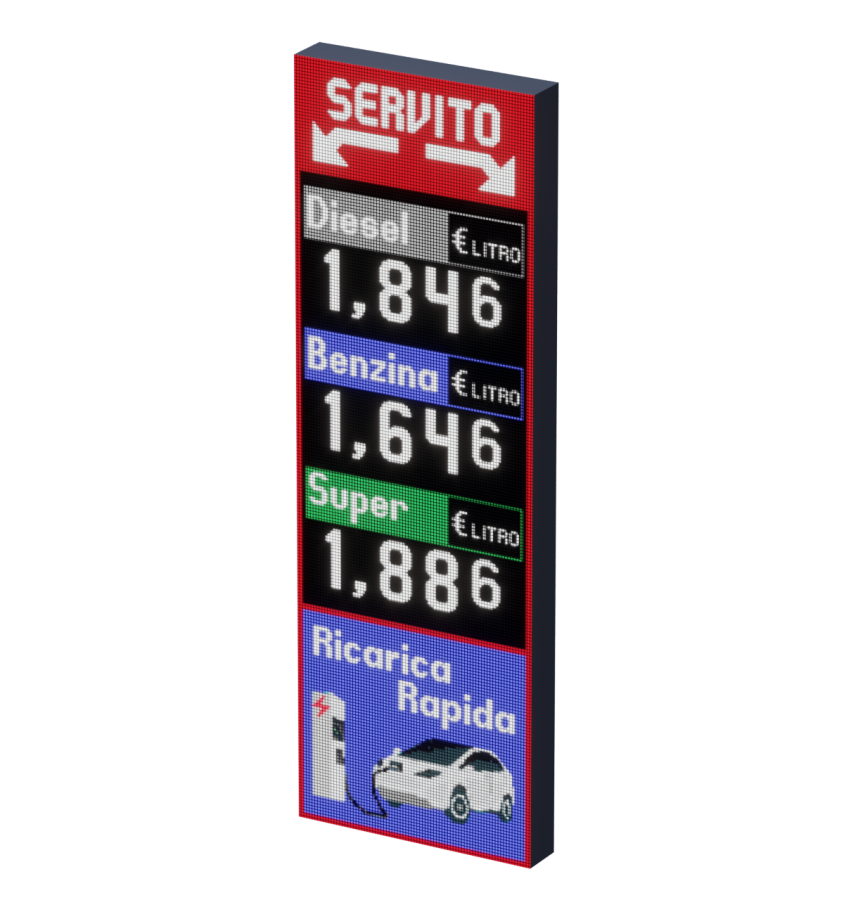

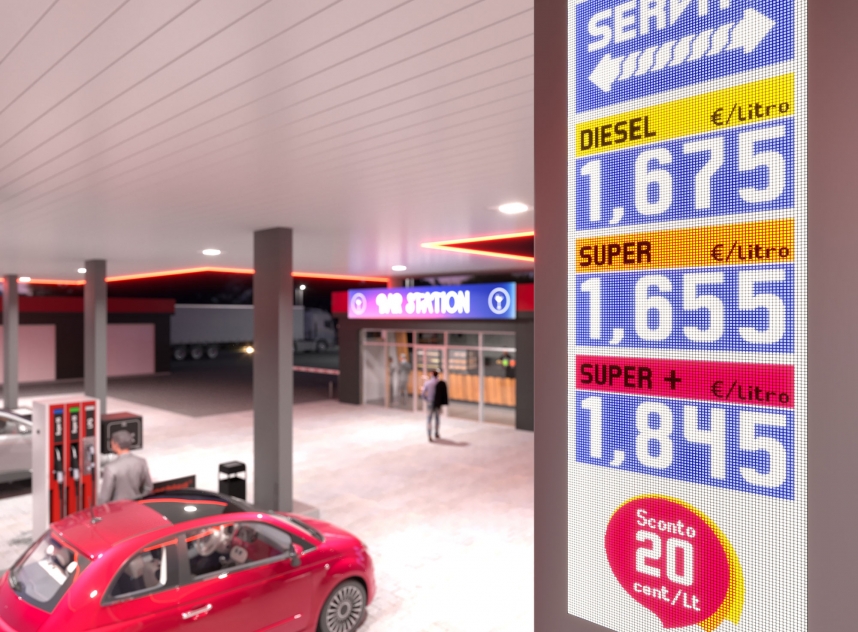

Full color LED display, size 507x1007x110 mm, available with P2.97 and P3.91, particularly suitable to be integrated on the pylons of petrol station canopy, or used as a digital sign for shop centre.
multimedia contents can be scheduled, the prices of fuel are automatically updated via cable or wireless with various selectable communication protocols. AUDIO OUTPUT is available.
multimedia contents and the main settings can be programmed from CLOUD SOFTWARE, it is not necessary to install any software on the user’s PC.
The screen is subdivided in LED modules with size 250×250 mm. and they are easily removable from the front, this allows also access to all the internal components without having to remove the metal cabinet.
COPPER LED TYPE
GOLD LED TYPE
Full color LED display, size 507x1507x110 mm, available with P2.97 and P3.91, particularly suitable to be integrated on the pylons of petrol station canopy, or used as a digital sign for shop centre.
multimedia contents can be scheduled, the prices of fuel are automatically updated via cable or wireless with various selectable communication protocols. AUDIO OUTPUT is available.
multimedia contents and the main settings can be programmed from CLOUD SOFTWARE, it is not necessary to install any software on the user’s PC.
The screen is subdivided in LED modules with size 250×250 mm. and they are easily removable from the front, this allows also access to all the internal components without having to remove the metal cabinet.
COPPER LED TYPE
GOLD LED TYPE

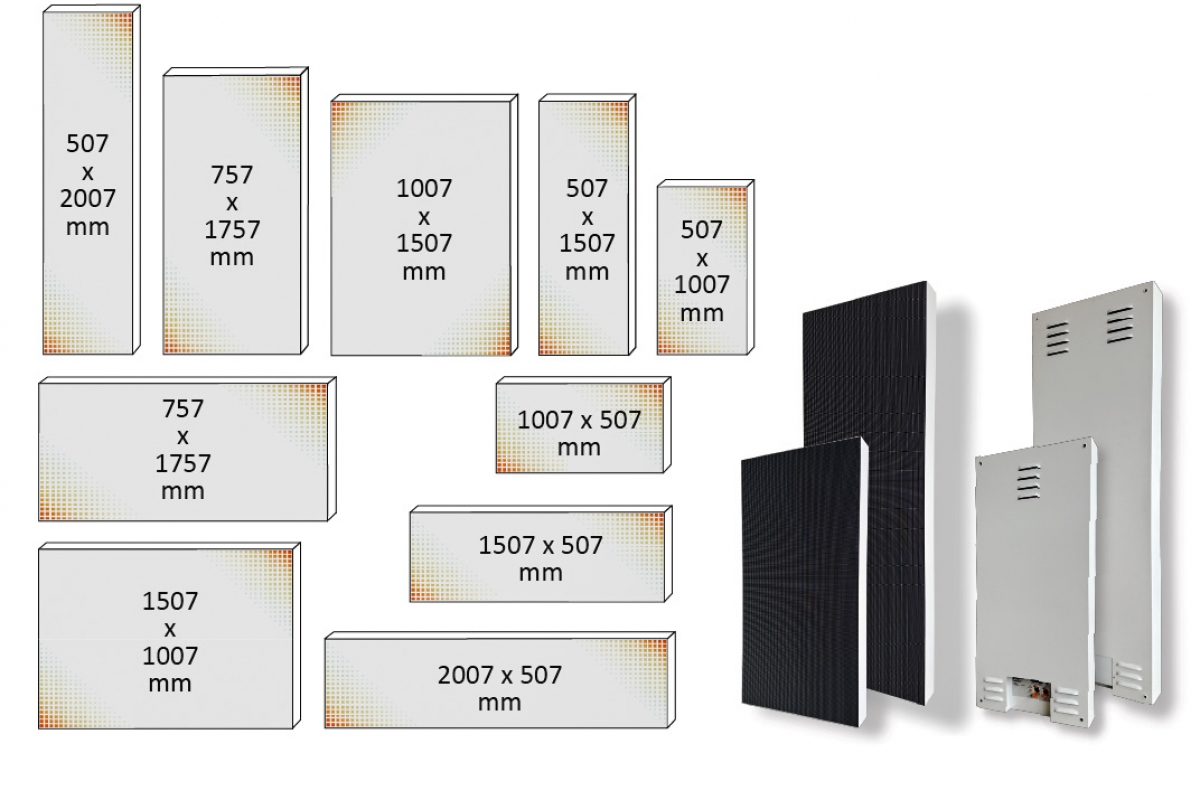

Modular LED cabinets, available in 4 sizes that can be combined with each other, allow you to create different types of customized screens.
The 1000×1000 mm cabinet is available pitch P3.91 ; P5.95 ; P8.33, it is particularly suitable for composing large format screens. The 500×1000 mm. cabinet available pitch P2.97 ; P3.91; P5.95 ; P8.33, it is optimal for small vertical screens. The 1000×500 mm cabinets. available pitch P2.97 ; P3.91; P5.95 ; P8.33 and the 1500×250 mm cabinets available pitch P2.97 ; P3.9, allow you to easily compose long LED screens.
Multimedia contents can be scheduled, the prices of fuel are automatically updated via cable or wireless with various selectable communication protocols. AUDIO OUTPUT is available.
Multimedia contents and the main settings can be programmed from CLOUD SOFTWARE, it is not necessary to install any software on the user’s PC.
The screen is subdivided in LED modules with size 250×250 mm. and they are easily removable from the front, this allows also access to all the internal components without having to remove the metal cabinet.
In order to guarantee maximum precision in the assembly phase, the cabinets are equipped with alignment correction to have image continuity without interruptions or misalignments. the setting is pre-adjusted in the factory.
CABINET 1500X250 – COPPER LED TYPE
CABINET 1500X250 – GOLD LED TYPE
CABINET 1000X500 – COPPER LED TYPE
CABINET 1000X500 – GOLD LED TYPE
CABINET 500X1000 – COPPER LED TYPE
CABINET 500X1000 – GOLD LED TYPE
CABINET 1000X1000 – COPPER LED TYPE
CABINET 1000X1000 – GOLD LED TYPE
The cabinets are available as Master type or Slave type. To compose an LED screen it is necessary to have a Master cabinet which contains the Player units and which must be connected to the Cloud platform through Internet, while all the other cabinets must be of the Slave type. All displays are connected in cascade with an Ethernet cable starting from the Master units.
A Master display is an independent display that displays its own multimedia content. The Slave displays, on the other hand, work synchronously with the Master display.
The available web connections are: ETHERNET and WIFI adding the optional external antenna.
This system becomes more convenient for small screens.
Alternatively, a screen can be constituted by Slave cabinets type and must be connected in cascade with an Ethernet cable, starting from an independent Hitechled Player. The Player looks like a Rack and must be positioned indoors, IP20 protection level. This system is recommended for large screens.
Rack mod. RVP300CP – Remote video player + automatic fuel price updating function.
Rack mod. RVP300C – Remote video player.
Master – Slave connection
Rack – Slave connection
ACCESSORIES FOR STAND ALONE DISPLAYS AND MODULAR CABINETS
