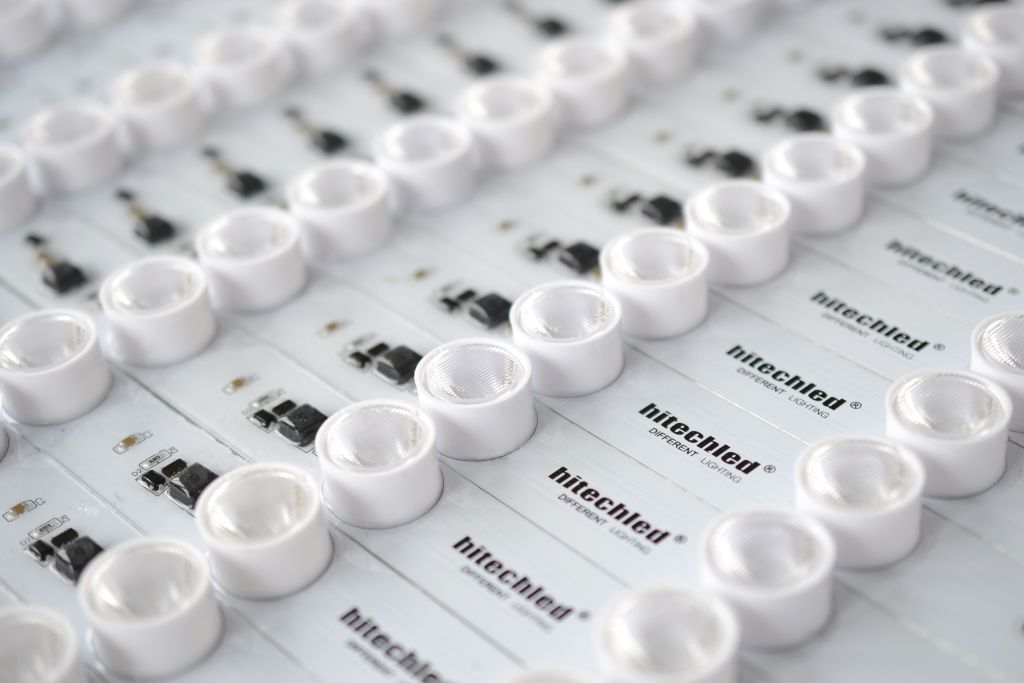

For single-sided signs we have created LED bars operating at 24VDC and fitted with batwing prismatic lenses with a beam angle of 160°/170°, which distribute the light evenly and perform extremely well for backlighting tension fabric signs, as well as opal plexiglass signs, starting from a reduced depth (5-6 cm).
For double-sided signs, we have instead developed LED bars that also operate at 24VDC, with lenses that narrow the beam angle to achieve the correct reflection inside the sign box. Mounted around the inner profile of the sign, they can illuminate both faces.
All LED bars can be fixed with the professional adhesive on the base of each bar or with screws, and are supplied with leads with connectors: male on one end and female on the other, allowing them to be connected in series.

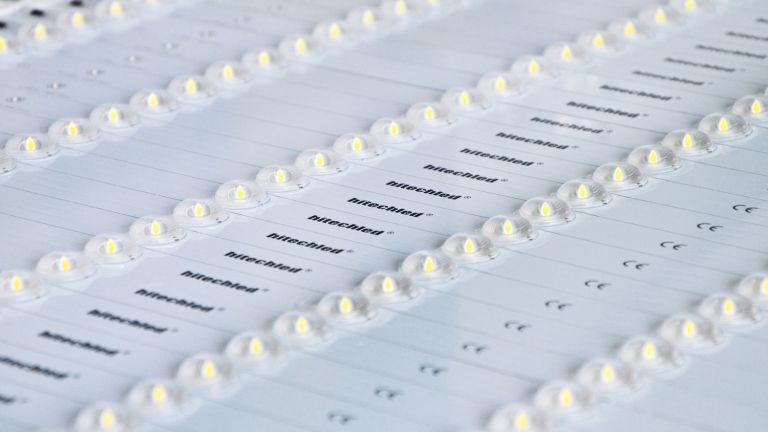

KIT of 10 HIGH EFFICIENCY LED Bars linked together in a curtain layout, suitable for backlighting low-depth illuminated signs, ideal for tensioned fabric or opal plexiglass. Prism optics for perfect light diffusion. Available in 2 lengths, 960 mm and 320 mm, in a version for indoor signs and a version for outdoor signs.

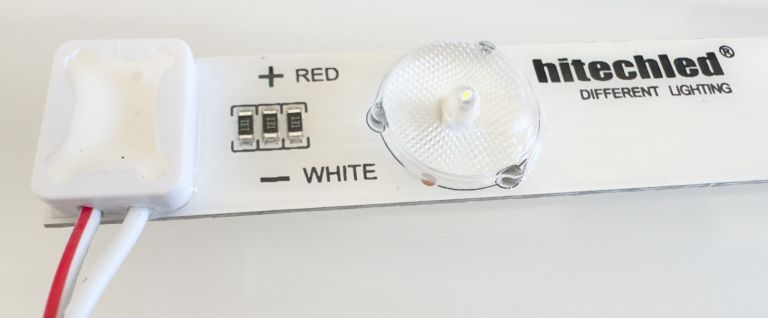

Kit of 5 HIGH EFFICIENCY LED bars connected in series for linear lighting, such as channel outlines, mouldings and the illuminated fascia of fuel canopies.
LED bars for perimeter lighting of lightboxes: one bar model with 6 LEDs and one with 3 LEDs. The surface to be lit can be tensioned fabric or PMMA Opal 3mm. Indoor application.
For single-sided signs we have created LED bars operating at 24VDC and fitted with batwing prismatic lenses with a beam angle of 160°, which distribute the light evenly and perform extremely well for backlighting tension fabric signs, as well as opal plexiglass signs, starting from a reduced depth (5-6 cm).
For double-sided signs, we have instead developed LED bars that also operate at 24VDC, with lenses that narrow the beam angle to achieve the correct reflection inside the sign box. Mounted around the inner profile of the sign, they can illuminate both faces.
All LED bars can be fixed with the professional adhesive on the base of each bar or with screws, and are supplied with leads with connectors: male on one end and female on the other, allowing them to be connected in series.
Tell us about your project: our technical department will propose the most suitable configuration.
