HDP COMPACT Series

HDP COMPACT Mini Totem

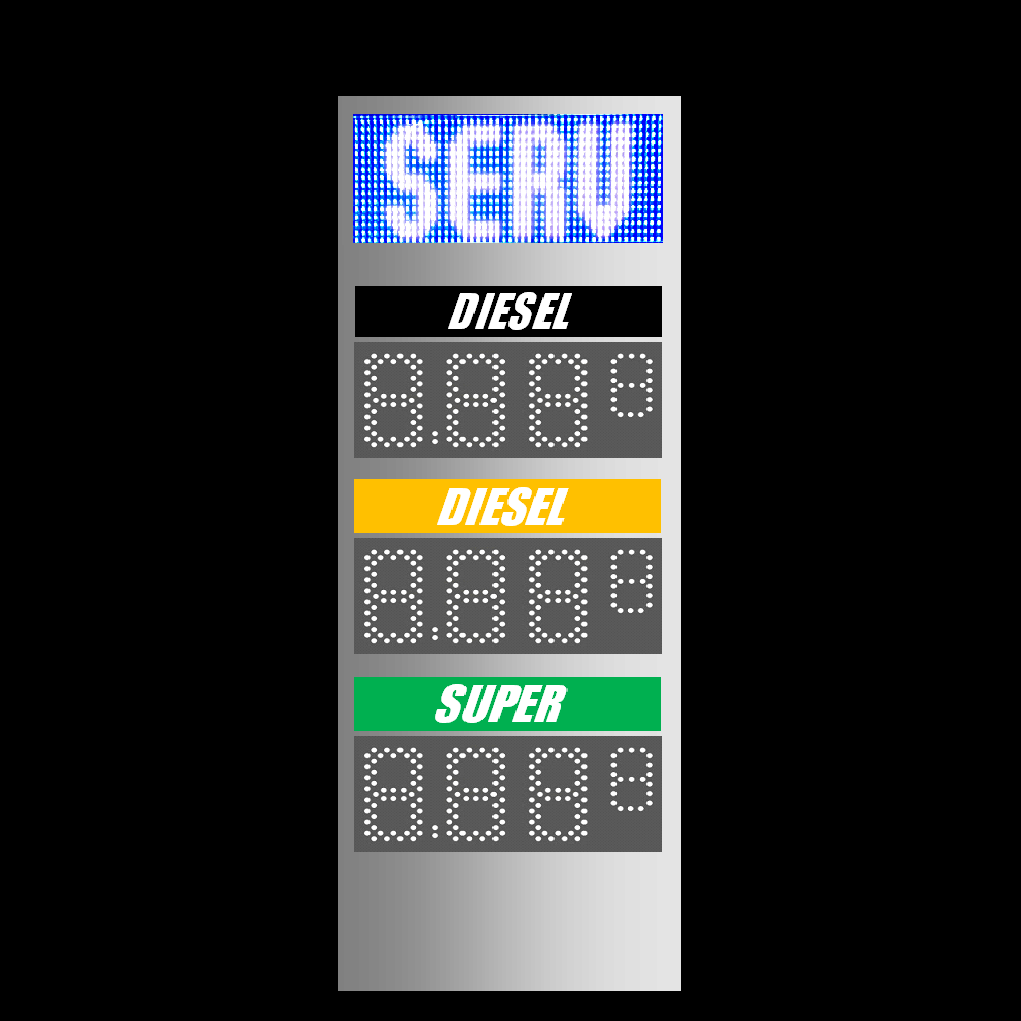

HDP COMPACT is a complete LED system for displaying fuel prices and service messages and for illuminating the product indicators (DIESEL, SUPER ..); its compactness and slim profile make it suitable for integration into the single-sided and double-sided mini totems of petrol stations. The range of available price displays includes the following sizes: 10 cm, 12 cm and 15 cm character height.

Catalogue

Products in this category

HDP COMPACT Series

HDPCOMPACT

HDP COMPACT Mini Totem

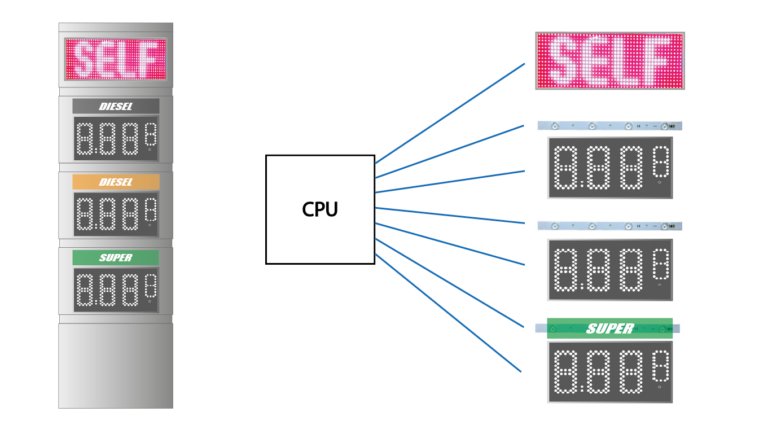

HDP COMPACT is a special series designed for building compact, low-depth totems, single-sided or double-sided. The kit includes the LED price displays with digit sizes of 10 mm, 12 mm and 15 mm, the graphic display for service messages and the LED bars with dedicated optics for backlighting the product indicators. Everything is controlled automatically by a single CPU.

Download the datasheet

Insights

Applications and insights

The SMD LEDs used are suitable for continuous 24-hour operation and for exposure to sunlight. The printed circuit boards making up these LED displays are coated with a special silicone resin, whose formula keeps it elastic over time, preventing cracks and infiltration. A heat-insulating sun shield front panel protects the LEDs and electronic components. A single-sided or double-sided fuel price kit requires a series of elements, such as the required number of LED displays, the CPU, suitable power supplies, wiring, the remote control and, where needed, a converter for connection to the POS. All the necessary elements are listed in the datasheets.
